Phụ tùng máy nén khí Fima

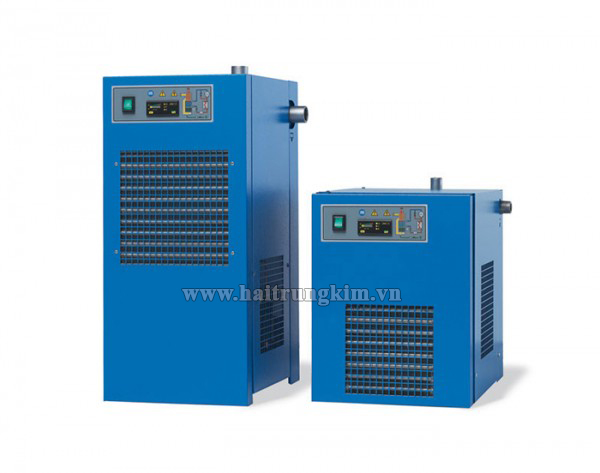

Máy sấy không khí lạnh Fima



Máy sấy lạnh xử lý không khí nén

Model Flow rate Power Supply Connections Pressure Dimensions Weight
DRYER     Ø (IN-OUT) Drop L x D x H
Type L/Min CFM M3/h V/Hz in Bar mm Kg
FD 3 350 12,36 21 230/50 G3/8 BSP-F 0,15 310 x 345 x 435 21
FD 6 600 21,19 36 230/50 G1/2 BSP-F 0,04 370 x 515 x 475 25
FD 9 950 33,55 57 230/50 G1/2 BSP-F 0,09 370 x 515 x 475 26
FD 12 1200 42,38 72 230/50 G1/2 BSP-F 0,14 370 x 515 x 475 28
FD 18 1800 63,57 108 230/50 G1/2 BSP-F 0,32 370 x 515 x 475 32
FD 25 2500 88,29 150 230/50 G1 BSP-F 0,24 345 x 420 x 740 34
FD 32 3200 113,01 192 230/50 G1.1/4 BSP-F 0,16 345 x 445 x 740 39
FD 43 4300 151,85 258 230/50 G1.1/4 BSP-F 0,24 345 x 445 x 740 40
FD 52 5200 183,64 312 230/50 G1.1/4 BSP-F 0,34 485 x 455 x 825 49
FD 61 6100 215,42 366 230/50 G1/2 BSP-F 0,19 555 x 580 x 885 54
FD 75 7500 264,86 450 230/50 G1/2 BSP-F 0,25 555 x 580 x 885 56
FD 105 10500 370,80 630 230/50 G2 BSP-F 0,14 555 x 625 x 975 94
FD 130 13000 459,09 780 230/50 G2 BSP-F 0,20 555 x 625 x 975 96
FD 168 16800 593,28 1008 230/50 G2 BSP-F 0,15 666 x 725 x 1105 144
FD 190 19000 670,98 1140 400/50 G2.1/2 BSP-F 0,21 645 x 920 x 1100 189
FD 220 22000 776,92 1320 400/50 G2.1/2 BSP-F 0,28 645 x 920 x 1100 212


Kích thước: Dài x Sâu x Cao


Máy sấp hấp thụ xử lý không khí nén

Model Flow rate Power Supply Connections Inlet Filter Outlet Filter Dimensions Weight
DRYER     Ø (IN-OUT)     L x D x H
Type L/Min CFM M3/h V/Hz   Model Model mm Kg
FAD 3 320 11,30 19,2 230/50 G 3/8” BSP-F FOF008 FSF008 445 x 400 x 1145 55
FAD 5 530 18,72 31,8 230/50 G 3/8” BSP-F FOF008 FSF008 445 x 400 x 1735 65
FAD 8 760 26,84 45,6 230/50 G 3/8” BSP-F FOF008 FSF008 450 x 400 x 1830 71
FAD 12 1.200 42,38 72 230/50 G 1/2” BSP-F FOF012 FSF012 520 x 600 x 1945 87
FAD 18 1.850 65,33 111 230/50 G 3/4” BSP-F FOF018 FSF018 630 x 600 x1940 111
FAD 25 2.500 88,29 150 230/50 G 1” BSP-F FOF030 FSF030 755 x 600 x 1945 128
FAD 30 3.000 105,94 180 230/50 G 1” BSP-F FOF030 FSF030 885 x 700 x 1935 161
FAD 40 3.900 137,73 234 230/50 G 1.1/2” BSP-F FOF055 FSF055 920 x 700 x 1920 186
FAD 50 5.000 176,57 300 230/50 G 1.1/2” BSP-F FOF055 FSF055 1005 x 700 x 1985 232
FAD 60 6.200 218,95 372 230/50 G 1.1/2” BSP-F FOF080 FSF080 1035 x 700 x 1940 283
FAD 75 7.500 264,86 450 230/50 G 1.1/2” BSP-F FOF080 FSF080 1060 x 700 x 2000 305
FAD 90 9.000 317,83 540 230/50 G 1.1/2” BSP-F FOF120 FSF120 1060 x 700 x 1995 340
FAD 130 12.800 452,03 768 230/50 G 2” BSP-F FOF160 FSF160 1200 x 760 x 2020 403
FAD 160 16.200 572,09 972 230/50 G 2” BSP-F FOF160 FSF160 1310 x 870 x 2020 485
FAD 200 20.500 723,95 1230 230/50 G 2.1/2” BSP-F FOF250 FSF250 1475 x 1040 x 2165 702
FAD 250 25.500 900,52 1530 230/50 G 2.1/2” BSP-F FOF250 FSF250 1525 x 1050 x 2180 813
FAD 300 30.000 1059,43 1800 230/50 DN80 PN16 FOF400 FSF400 1535 x 1050 x 2280 1113
FAD 350 36.000 1271,32 2160 230/50 DN80 PN16 FOF400 FSF400 1625 x 1200 x 2320 1250
FAD 400 42.000 1483,21 2520 230/50 DN80 PN16 FOF400 FSF400 1675 x 1200 x 2340 1850


Kích thước: Dài x Sâu x Cao
